Product
600V EXT-X/2501 LF
Application
Appropriate for cable bare wiring for high-speed moving.
Cable Bear test 50 million times or more. (or more ability 100 million times)
Robot cable with UL and cUL at 600V 105°C. (Category : AVLV2, AVLV8)
Feature

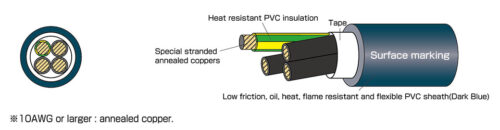

Fine wire conductor use.
Low friction and heat resistant PVC used for insulation.
Oil and heat resistant PVC used for sheath.
Low friction material used for sheath.
Flame resisting : UL VW-1, cUL FT1.
Appropriate for cable bare wiring for high-speed moving.
Cable Bear test 50 million times or more. (or more ability 100 million times)
Robot cable with UL and cUL at 600V 105°C. (Category : AVLV2, AVLV8)
Feature
Fine wire conductor use.
Low friction and heat resistant PVC used for insulation.
Oil and heat resistant PVC used for sheath.
Low friction material used for sheath.
Flame resisting : UL VW-1, cUL FT1.

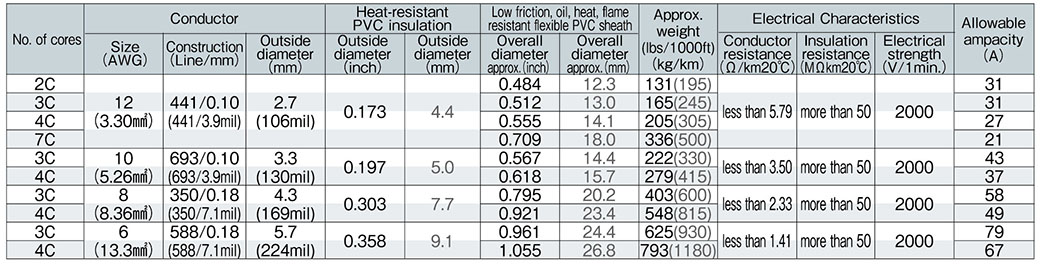

| Category | Power |
|---|---|
| AWG | 12 - 6 |
| SQ（mm2） | 3.5 - 14 |
| Core (pair) | Multi |
| Use | Moving |
| Shield | None |
| Voltage | 600V |
| Rating temperature | 105°C |
| Standards |
  |
| Characteristics | Oil, Heat, Flexible, Twisting, Wear |
