Product
600V TURBO-FLEX/2501 LF
Application
It is possible to use it for wiring medium or low-speed operational components of machine tool.
Cable Bear test 5 million times or more. (or more ability 10 million times)
Vibration resistant cable with UL and cUL at 600V, 105°C. (Category : AVLV2, AVLV8)
CE marking.
Fit to Electrical Appliance and Material Safety Law. (7 cores or less cable.)
Feature
Fine wire conductor use.

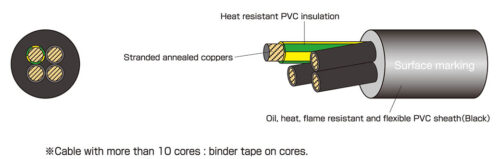

Heat resistant PVC used for insulation.
Oil and heat resistant PVC used for sheath.
Flame resisting : UL VW-1, cUL FT1.
It is possible to use it for wiring medium or low-speed operational components of machine tool.
Cable Bear test 5 million times or more. (or more ability 10 million times)
Vibration resistant cable with UL and cUL at 600V, 105°C. (Category : AVLV2, AVLV8)
CE marking.
Fit to Electrical Appliance and Material Safety Law. (7 cores or less cable.)
Feature
Fine wire conductor use.
Heat resistant PVC used for insulation.
Oil and heat resistant PVC used for sheath.
Flame resisting : UL VW-1, cUL FT1.
| Category | Power |
|---|---|
| AWG | 19 - 4 |
| SQ（mm2） | 0.75 - 22 |
| Core (pair) | Multi |
| Use | Moving |
| Shield | None |
| Voltage | 600V |
| Rating temperature | 105°C |
| Standards |
    |
| Characteristics | Oil, Heat, Flexible, Twisting |
