Product
SUNLIGHT SX-E LF
Shielded multipurpose twisted pair type instrumentation cable
Application
Weak electric instrumentation cable wiring ofthe automatic control system of various kindsof production equipment in the factory, or for small power circuit to be used, for example,line of computer systems in the office.
Oil, flexibility, flame retardant, use of shielded.
Cable for RS485, RS422, RS232C.
Rated voltage:Less than 100V. Temp:75°C.
Feature
PE with excellent electrical characteristics for insulation.
Oil, heat, flame retardant and soft PVC for sheath.
Sheath material is non-migratory against ABS and PS resin.
Chemical, water, abrasion, cold resistance PVC for sheath.
Flame resisting : UL VW-1.

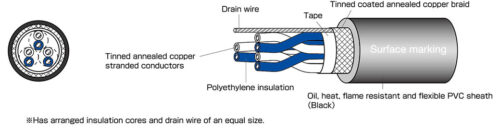

With drain wire.
Application
Weak electric instrumentation cable wiring ofthe automatic control system of various kindsof production equipment in the factory, or for small power circuit to be used, for example,line of computer systems in the office.
Oil, flexibility, flame retardant, use of shielded.
Cable for RS485, RS422, RS232C.
Rated voltage:Less than 100V. Temp:75°C.
Feature
PE with excellent electrical characteristics for insulation.
Oil, heat, flame retardant and soft PVC for sheath.
Sheath material is non-migratory against ABS and PS resin.
Chemical, water, abrasion, cold resistance PVC for sheath.
Flame resisting : UL VW-1.
With drain wire.
Category | Signal and instrumentation |
---|---|
AWG | - |
SQ(mm2) | 0.75 - 1.25 |
Core (pair) | Multi |
Use | Fix |
Shield | Have |
Voltage | 100V |
Rating temperature | 75°C |
Standards | |
Characteristics | Oil, Heat |
