1000V RFX-SB LF
Electric wire for wiring equipment. (with braided shield(SB))
Excellent in flexible!!
Application
Appropriate for wiring in a narrow place is excellent in flexibility.
It is possible to use it for wiring medium or low-speed operational components of machine tool.
Drag chain test 10 million times or more.
Electrical insulated wire for internal Wiring equipment with UL and cUL at 1000V, 90°C.
The shield(-SB) reduce the impact of external noise on the wire.
Feature
Fine wire conductor use.
Super flexible heat resistant PVC used for insulation.
Oil, heat resistant and flexible PVC sheath material is used.
With braided shield(SB).
Flame resisting:UL VW-1.
Excellent in flexible!!
Application
Appropriate for wiring in a narrow place is excellent in flexibility.
It is possible to use it for wiring medium or low-speed operational components of machine tool.
Drag chain test 10 million times or more.
Electrical insulated wire for internal Wiring equipment with UL and cUL at 1000V, 90°C.
The shield(-SB) reduce the impact of external noise on the wire.
Feature
Fine wire conductor use.
Super flexible heat resistant PVC used for insulation.
Oil, heat resistant and flexible PVC sheath material is used.
With braided shield(SB).
Flame resisting:UL VW-1.

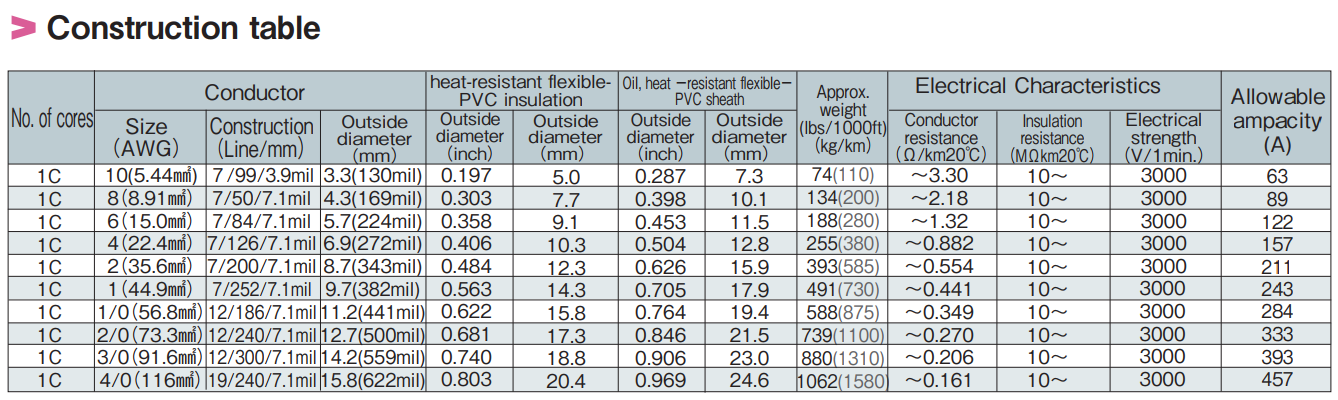

| Category | Power |
|---|---|
| AWG | 10 - 4/0 |
| SQ（mm2） | 5.5 - 100 |
| Core (pair) | Single |
| Use | Moving |
| Shield | Have |
| Voltage | 1000V |
| Rating temperature | 90°C |
| Standards |
 |
| Characteristics | Oil, Heat, Flexible |
