Product
EXT-3D/CL3X/2586 600V LF
Application
Appropriate wiring for multi-joint unit portion. (Twist test 20 million times or more.)
Appropriate for cable bare wiring for high-speed moving. (Cable Bear test 20 million times or more.)
CL3X tha is the listing standard is acquired and it correspomds to NFPA70, 79.
Robot cable with UL and cUL at 300V,105°C. (Category : AVLV2, AVLV8, QPTZ)

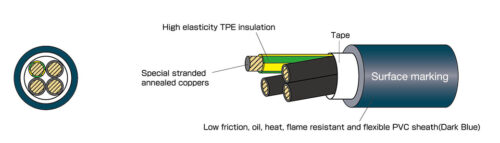

Feature
Extremely fine conductor use.
High bending elasticity and heat resistant TPE is used for insulation.
Oil and heat resistant PVC used for sheath.
Low friction material used for sheath.
Flame resisting : UL VW-1, cUL FT1.
Appropriate wiring for multi-joint unit portion. (Twist test 20 million times or more.)
Appropriate for cable bare wiring for high-speed moving. (Cable Bear test 20 million times or more.)
CL3X tha is the listing standard is acquired and it correspomds to NFPA70, 79.
Robot cable with UL and cUL at 300V,105°C. (Category : AVLV2, AVLV8, QPTZ)
Feature
Extremely fine conductor use.
High bending elasticity and heat resistant TPE is used for insulation.
Oil and heat resistant PVC used for sheath.
Low friction material used for sheath.
Flame resisting : UL VW-1, cUL FT1.

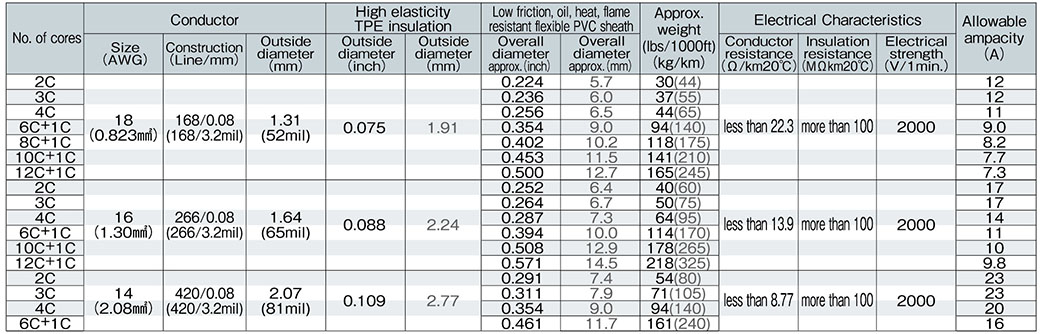

| Category | Power |
|---|---|
| AWG | 18 - 14 |
| SQ（mm2） | 0.75 - 2 |
| Core (pair) | Multi |
| Use | Moving |
| Shield | None |
| Voltage | 600V |
| Rating temperature | 105°C |
| Standards |
   |
| Characteristics | Oil, Heat, Flexible, Twisting, Wear |
