Product
EXT-PREM/CMX/2517 LF
Application
Appropriate wiring for multi-joint unit portion. (Twist test 40 million times or more.)
Appropriate for cable bare wiring for high-speed moving. (Cable Bear test 50 million times or more.)
CMX tha is the listing standard is acquired and it corresponds to NFPA70, 79.
Robot cable with UL and cUL at 300V,105°C. (Category : AVLV2, AVLV8, DUZX, DUZX7)
Feature
Tinned annealed copper superfine conductor use.
Fluorine resin (ETFE) is used for insulation.
Oil and heat resistant PVC used for sheath.
Low friction material used for sheath.
Flame resisting : UL VW-1, cUL FT1.
Coolant resistant.
Appropriate wiring for multi-joint unit portion. (Twist test 40 million times or more.)
Appropriate for cable bare wiring for high-speed moving. (Cable Bear test 50 million times or more.)
CMX tha is the listing standard is acquired and it corresponds to NFPA70, 79.
Robot cable with UL and cUL at 300V,105°C. (Category : AVLV2, AVLV8, DUZX, DUZX7)
Feature
Tinned annealed copper superfine conductor use.
Fluorine resin (ETFE) is used for insulation.
Oil and heat resistant PVC used for sheath.
Low friction material used for sheath.
Flame resisting : UL VW-1, cUL FT1.
Coolant resistant.

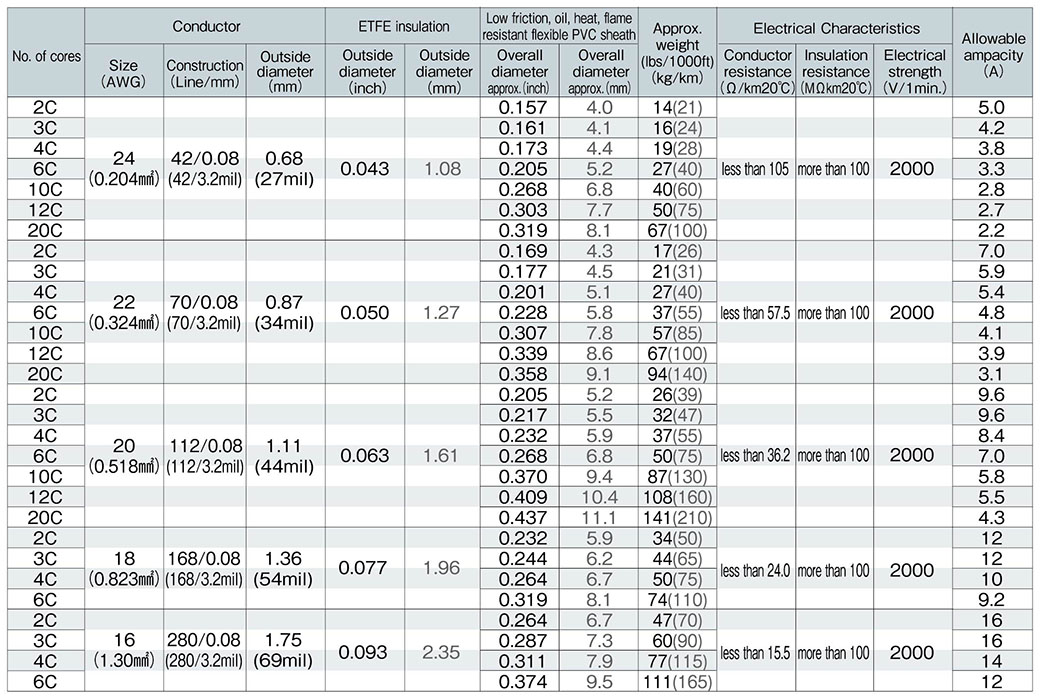

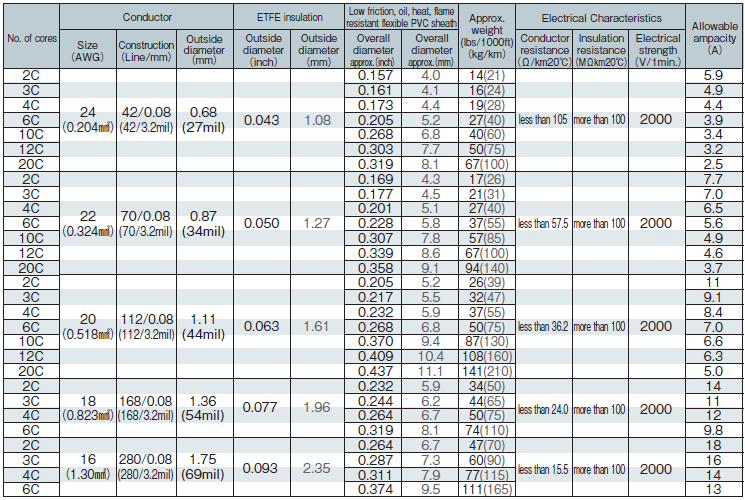

| Category | Signal and instrumentation, Power |
|---|---|
| AWG | 24 - 16 |
| SQ（mm2） | 0.2 - 1.25 |
| Core (pair) | Multi |
| Use | Moving |
| Shield | None |
| Voltage | 300V |
| Rating temperature | 105°C |
| Standards |
    |
| Characteristics | Oil, Heat, Flexible, Twisting, Wear |
