Product
FA-5E24SLAB/CM(GY)
CAT5e Ethernet fix cable
Application
FA standard cable with UL and cUL.
CAT5A
Flexible cable with UL,cUL at 300V 75℃.
(Category : DUZX,DUZX7,AVLV2,AVLV8)
Ether CAT
Feature
Flame resisting : UL VW-1, cUL FT1
It passes Vertical-trai Fleme Test of UL.cUL
Oil, heat, flame resisting flexible PVC material is used for sheath.
CM ｌisting standard is acquired and it corresponds to NFPA70.
Double shielded.
Application
FA standard cable with UL and cUL.
CAT5A
Flexible cable with UL,cUL at 300V 75℃.
(Category : DUZX,DUZX7,AVLV2,AVLV8)
Ether CAT
Feature
Flame resisting : UL VW-1, cUL FT1
It passes Vertical-trai Fleme Test of UL.cUL
Oil, heat, flame resisting flexible PVC material is used for sheath.
CM ｌisting standard is acquired and it corresponds to NFPA70.
Double shielded.

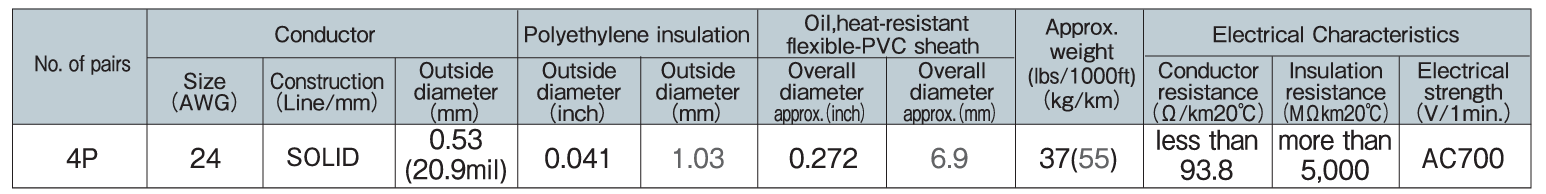

| Category | Signal and instrumentation, Ethernet |
|---|---|
| AWG | 24 - 24 |
| SQ（mm2） | 0.2 - 0.2 |
| Core (pair) | Multi |
| Use | Fix |
| Shield | Have |
| Voltage | 30V |
| Rating temperature | 80°C |
| Standards |
    |
| Characteristics | Oil, Heat |
