Product
FAMV-5E26SB-IPGV□M

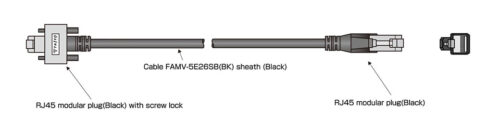

Ethernet cable with screw lock Patch cord
Application
Moving Ethernet cable to connect to a product of the GigE Vision conformity.
The cable is used modular plug which a screw locking mechanism is included in.
－GigE Vision is new standard of camera inferface which is using the communication protocol by the Gigabit Ethernet.
Feature(cable)
Ethernet cable corresponding the 1000 Base-T method.
The high flexural Ethernet cable which cleard Cable chain test 40 million times or more.
Oil, heat, resisting flexible PVC material is used for sheath.
Flame rating : UL VW-1(Cable).
PoE correspondence : IEEE802.3af conformity
Application
Moving Ethernet cable to connect to a product of the GigE Vision conformity.
The cable is used modular plug which a screw locking mechanism is included in.
－GigE Vision is new standard of camera inferface which is using the communication protocol by the Gigabit Ethernet.
Feature(cable)
Ethernet cable corresponding the 1000 Base-T method.
The high flexural Ethernet cable which cleard Cable chain test 40 million times or more.
Oil, heat, resisting flexible PVC material is used for sheath.
Flame rating : UL VW-1(Cable).
PoE correspondence : IEEE802.3af conformity
| Category | Signal and instrumentation, Ethernet |
|---|---|
| AWG | 26 - 26 |
| SQ（mm2） | 0.15 - 0.15 |
| Core (pair) | Multi |
| Use | Moving |
| Shield | Have |
| Voltage | 30V |
| Rating temperature | 80°C |
| Standards |
  |
| Characteristics | Oil, Heat, Flexible, Twisting |
