Product
SSX10516 LF
High heat resistant thin wires for internal wiring of electronics
Application
The permittivity and the dielectric substance loss are small,
and it is the best for the electric circuit where the transmisson speed improvement is required.
Fluoroprastics resin insulated wire with UL at 600V, 200°C. (Category : AVLV2)
Feature

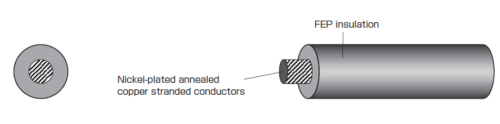

Fluoroplastics is used for the insulation.
Making to a minute diameter is achieved.
It is excellent to heat, cold, oil, chemical, and solvents resistant.
Flame resisting : UL VW-1.
Application
The permittivity and the dielectric substance loss are small,
and it is the best for the electric circuit where the transmisson speed improvement is required.
Fluoroprastics resin insulated wire with UL at 600V, 200°C. (Category : AVLV2)
Feature
Fluoroplastics is used for the insulation.
Making to a minute diameter is achieved.
It is excellent to heat, cold, oil, chemical, and solvents resistant.
Flame resisting : UL VW-1.
| Category | Power |
|---|---|
| AWG | 28 - 16 |
| SQ（mm2） | 0.08 - 1.25 |
| Core (pair) | Single |
| Use | Fix |
| Shield | None |
| Voltage | 600V |
| Rating temperature | 200°C |
| Standards |
 |
| Characteristics | Oil, Heat |
