Product
CM/2464-1061/2A-SB LF
Application
Cable for RS232C (Only multi pair cables).
It is possible to use it as a communication tray cable.
The substitutions for UL13 CL3, CL3X shall be permitted.
Shielded Electric equipment cable with UL and cUL at 300V, 80°C. (Category : DUZX, DUZX7, AVLV2, AVLV8)
Obtaining UL Listed CL2, this cable compliants to NFPA70, 79.
Feature
Semi-rigid PVC used for insulation.
Oil, heat resistant and Flexible PVC sheath material is used.
Flame resisting：UL VW-1, cUL FT1.
It passes Vertical-Tray Flame Test of UL.
Cable for RS232C (Only multi pair cables).
It is possible to use it as a communication tray cable.
The substitutions for UL13 CL3, CL3X shall be permitted.
Shielded Electric equipment cable with UL and cUL at 300V, 80°C. (Category : DUZX, DUZX7, AVLV2, AVLV8)
Obtaining UL Listed CL2, this cable compliants to NFPA70, 79.
Feature
Semi-rigid PVC used for insulation.
Oil, heat resistant and Flexible PVC sheath material is used.
Flame resisting：UL VW-1, cUL FT1.
It passes Vertical-Tray Flame Test of UL.

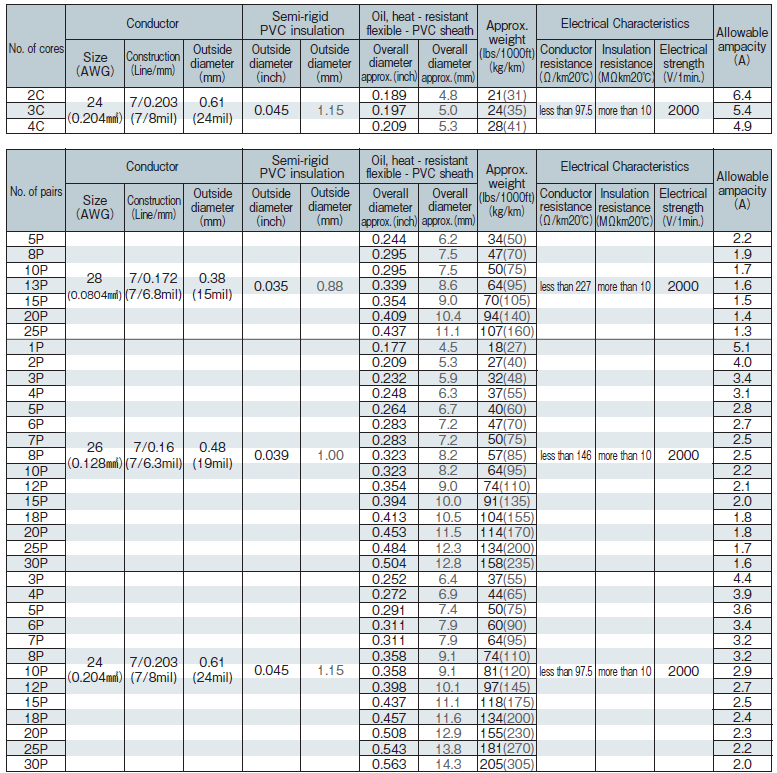

| Category | Signal and instrumentation, Power |
|---|---|
| AWG | 28 - 24 |
| SQ（mm2） | 0.08 - 0.2 |
| Core (pair) | Multi |
| Use | Fix |
| Shield | Have |
| Voltage | 300V |
| Rating temperature | 80°C |
| Standards |
    |
| Characteristics | Oil, Heat |
