Product
UE/2501E(N)/TC[Y/G]LG LF
For tray cable, raceway and electronic equipment cable
Application
Multi-cable for North America and EU.
Cable tray, for Raceway wiring.
Electric equipment cable with UL and cUL at 600V, 105°C.
(Category:QPOR，AVLV2，ZKHZ，AVLV8)
CE marking. (TÜV recognition product)
(Certificate of TÜV No.(nx18SWG+1x14AWG)J2051273)(nx16AWG+1x14AWG)
(Certificate of TÜV No.(14~12AWG)J2151249)
(Certificate of TÜV No.(10AWG)J2051252)
Obtaining UL Listed MTW and TC, this cable compliants to NFPA70 and 79.
Feature
Heat resistant PVC used for insulation.
Oil, heat resistant and Flexible PVC sheath material is used.
Flame resisting : UL VW-1, cUL FT1.
It passes Vertical-Tray Flame Test of UL.
Application
Multi-cable for North America and EU.
Cable tray, for Raceway wiring.
Electric equipment cable with UL and cUL at 600V, 105°C.
(Category:QPOR，AVLV2，ZKHZ，AVLV8)
CE marking. (TÜV recognition product)
(Certificate of TÜV No.(nx18SWG+1x14AWG)J2051273)(nx16AWG+1x14AWG)
(Certificate of TÜV No.(14~12AWG)J2151249)
(Certificate of TÜV No.(10AWG)J2051252)
Obtaining UL Listed MTW and TC, this cable compliants to NFPA70 and 79.
Feature
Heat resistant PVC used for insulation.
Oil, heat resistant and Flexible PVC sheath material is used.
Flame resisting : UL VW-1, cUL FT1.
It passes Vertical-Tray Flame Test of UL.

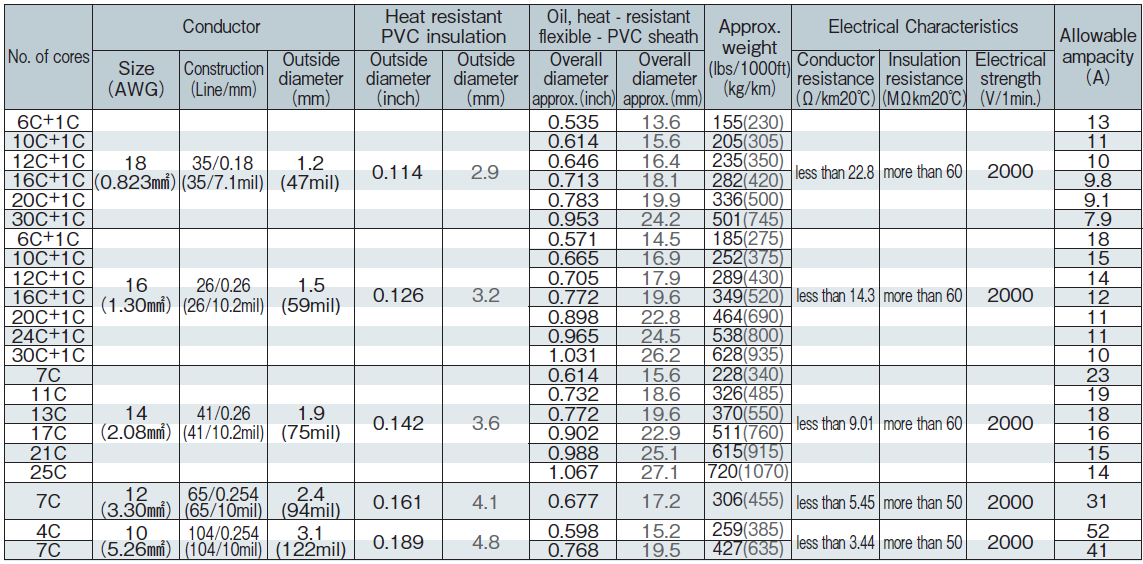

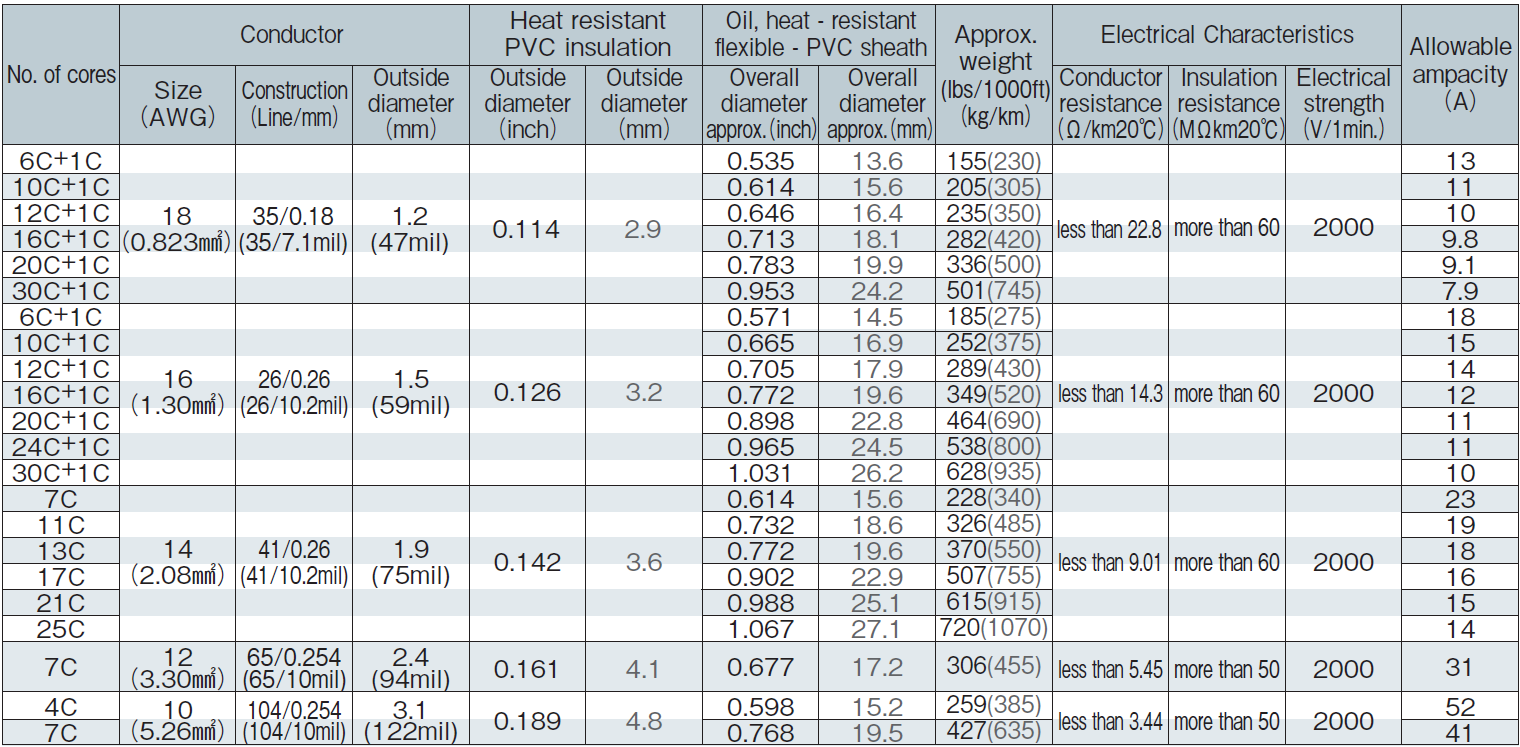

| Category | Power |
|---|---|
| AWG | 18 - 10 |
| SQ（mm2） | 0.75 - 5.5 |
| Core (pair) | Multi |
| Use | Fix |
| Shield | None |
| Voltage | 600V |
| Rating temperature | 105°C |
| Standards |
     |
| Characteristics | Oil, Heat |
