Product
SUNLIGHT DX LF
![](https://www.taiyocable.com/wp/wp-content/uploads/2023/04/SUNLIGHT-DXNE_LF_01-1-500x255.jpg)
![](https://www.taiyocable.com/wp/wp-content/uploads/2023/03/スクリーンショット-2024-06-10-191526.png)
Multipurpose twisted pair type instrumentation cable
Application
Cable for a terminal equipment, metering equipment, communications equipment, the internal wiring of every other electrons, electric apparatuses.
Oil, flexibility of use.Cable for RS232C.
UL and cUL AWM at 150V, 80°C.(Category:AVLV2,AVLV8)
Feature
Heat resistant PVC for insulation.
Oil, heat, flame retardant and soft PVC for sheath.
Sheath material is non-migratory against ABS and PS resin.
Chemical, water, abrasion, cold resistance PVC for sheath.
Flame resisting : UL VW-1 , cUL FT1(1P&3C: FT2).
Application
Cable for a terminal equipment, metering equipment, communications equipment, the internal wiring of every other electrons, electric apparatuses.
Oil, flexibility of use.Cable for RS232C.
UL and cUL AWM at 150V, 80°C.(Category:AVLV2,AVLV8)
Feature
Heat resistant PVC for insulation.
Oil, heat, flame retardant and soft PVC for sheath.
Sheath material is non-migratory against ABS and PS resin.
Chemical, water, abrasion, cold resistance PVC for sheath.
Flame resisting : UL VW-1 , cUL FT1(1P&3C: FT2).

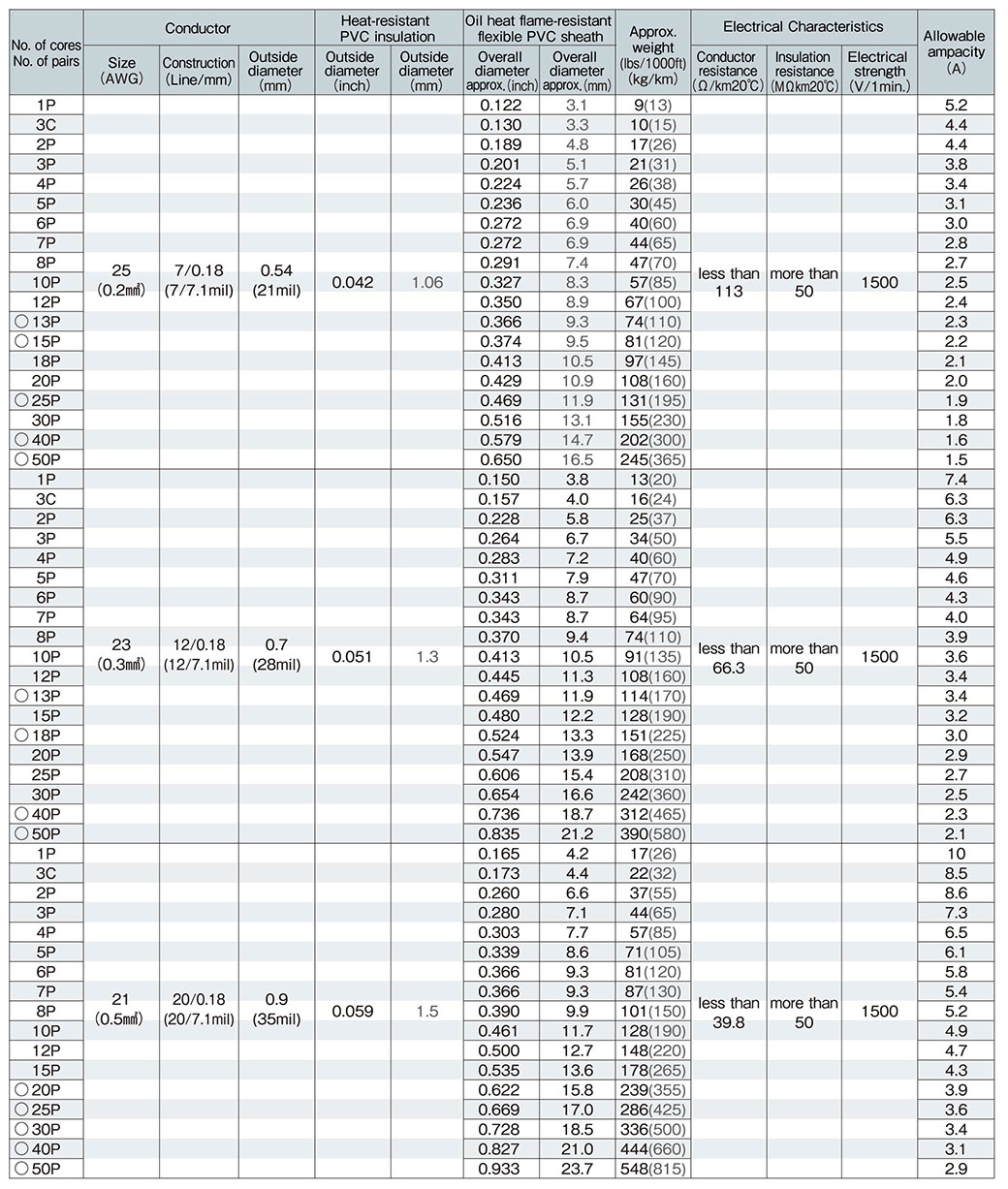

Category | Signal and instrumentation |
---|---|
AWG | 25 - 21 |
SQ(mm2) | 0.2 - 0.5 |
Core (pair) | Multi |
Use | Fix |
Shield | None |
Voltage | 150V |
Rating temperature | 80°C |
Standards |
|
Characteristics | Oil, Heat |
