Product
HYPERSOFT (HPF) #300SB LF
Application
The place which is need to oil, heat, noise resistant.
Rated voltage:300V. Temp:75℃（ability 90℃）
Feature

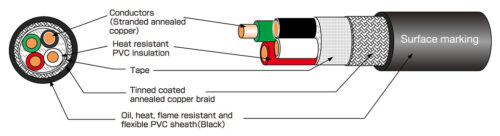

Heat resistant PVC used for insulation.
Oil, heat, flame resistant and soft PVC for sheath.
The place which is need to oil, heat, noise resistant.
Rated voltage:300V. Temp:75℃（ability 90℃）
Feature
Heat resistant PVC used for insulation.
Oil, heat, flame resistant and soft PVC for sheath.

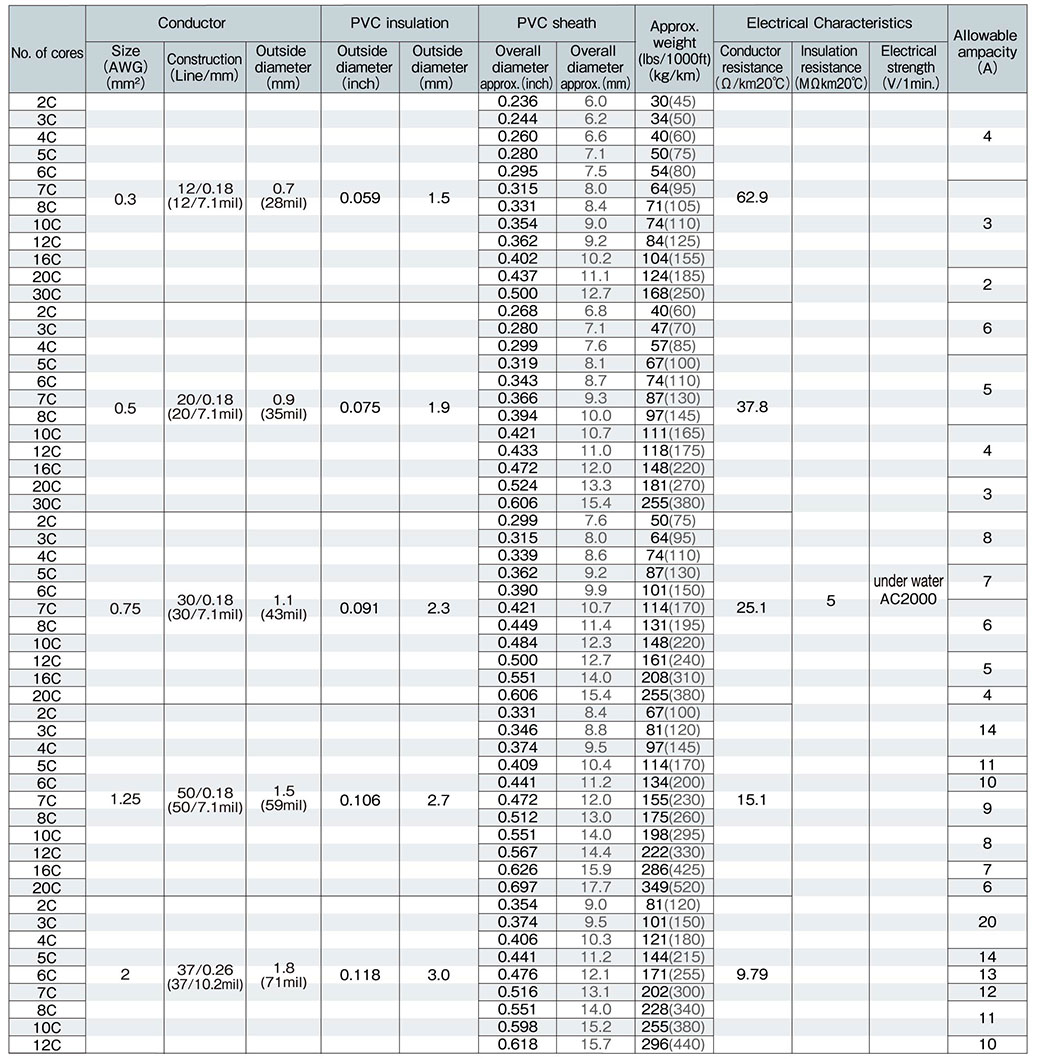

| Category | Signal and instrumentation, Power |
|---|---|
| AWG | - |
| SQ（mm2） | 0.3 - 2 |
| Core (pair) | Multi |
| Use | Fix |
| Shield | Have |
| Voltage | 300V |
| Rating temperature | 75°C |
| Standards |
 |
| Characteristics | Oil, Heat |
