Product
EM-ECTF/F HF
Application
Small electric appliances of a.c. 300V or under principally for indoor service.
Use of halogen-free specification.
Rated voltage：300V. Temp：75℃.
Feature
Non-halogen flame-resistant polyolefin for insulation and sheath.
Halogen-free, low smoke evolution.
Heat resistance 75 ℃.
Cold -40 ℃.
Conform to Electrical Appliance and Material Safety Law.
Small electric appliances of a.c. 300V or under principally for indoor service.
Use of halogen-free specification.
Rated voltage：300V. Temp：75℃.
Feature
Non-halogen flame-resistant polyolefin for insulation and sheath.
Halogen-free, low smoke evolution.
Heat resistance 75 ℃.
Cold -40 ℃.
Conform to Electrical Appliance and Material Safety Law.

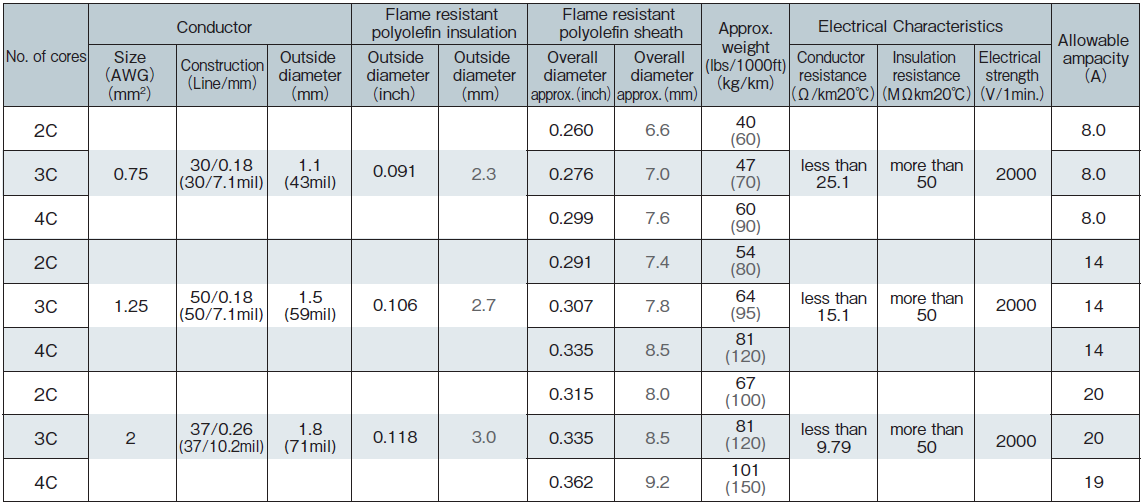

| Category | Signal and instrumentation, Power |
|---|---|
| AWG | - |
| SQ（mm2） | 0.75 - 2 |
| Core (pair) | Multi |
| Use | Fix |
| Shield | None |
| Voltage | 300V |
| Rating temperature | 75°C |
| Standards |
 |
| Characteristics | Oil, Heat |
