Product
HYPERSOFT (HPF) #600SB LF
Application
The place which is need to oil, heat, noise resistant
Rated voltage:600V. Temp:75℃（ability 90℃）
Feature

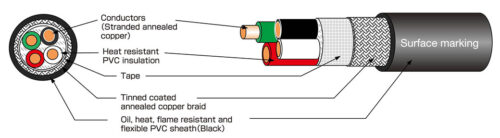

Heat resistant PVC used for insulation.
Oil, heat, flame resistant and soft PVC for sheath.
The place which is need to oil, heat, noise resistant
Rated voltage:600V. Temp:75℃（ability 90℃）
Feature
Heat resistant PVC used for insulation.
Oil, heat, flame resistant and soft PVC for sheath.

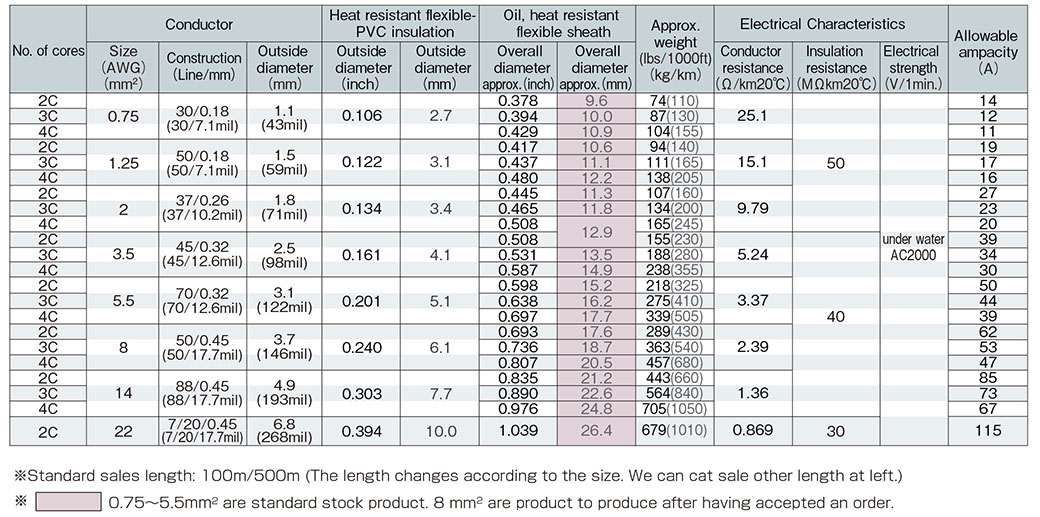

| Category | Power |
|---|---|
| AWG | - |
| SQ（mm2） | 0.75 - 22 |
| Core (pair) | Multi |
| Use | Fix |
| Shield | Have |
| Voltage | 600V |
| Rating temperature | 75°C |
| Standards |
 |
| Characteristics | Oil, Heat |
