Product
2PNCT
Application
Power supply circuit of portable electrical machinery and apparatus not higher than 600V and in other cases where flexibility and bending resistance are required.
(It is not suitable for applications where it undergoes repeated bending)
Rated voltage:600V. Temp:80°C.
Feature
EP rubber for insulation.
Electrical characteristics, heat resistance, ozone resistance.
High allowable current.
Chloroprene rubber for sheath.
Abrasion resistance, Oil resistance, flame retardance.
Compared to 2CT,2RNCT, diameter reduction, weight reduction.
Reference to JIS C 3327.
Conform to Electrical Appliance and MaterialSafety Law.
(125mm2 or more and, 8 cores or more is excluded)
Power supply circuit of portable electrical machinery and apparatus not higher than 600V and in other cases where flexibility and bending resistance are required.
(It is not suitable for applications where it undergoes repeated bending)
Rated voltage:600V. Temp:80°C.
Feature
EP rubber for insulation.
Electrical characteristics, heat resistance, ozone resistance.
High allowable current.
Chloroprene rubber for sheath.
Abrasion resistance, Oil resistance, flame retardance.
Compared to 2CT,2RNCT, diameter reduction, weight reduction.
Reference to JIS C 3327.
Conform to Electrical Appliance and MaterialSafety Law.
(125mm2 or more and, 8 cores or more is excluded)

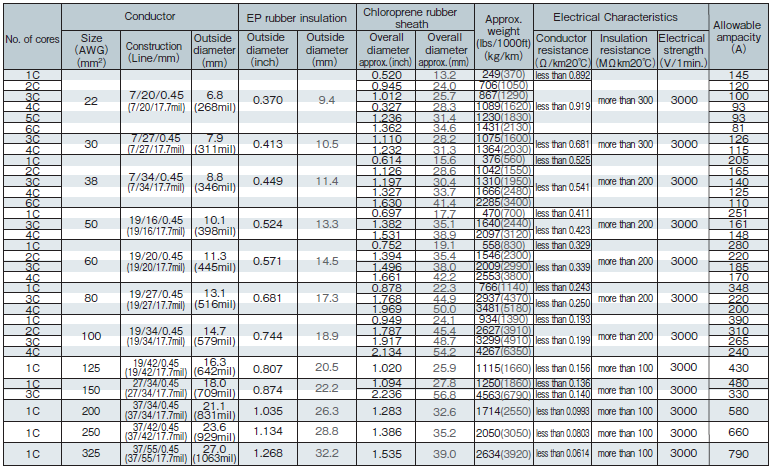

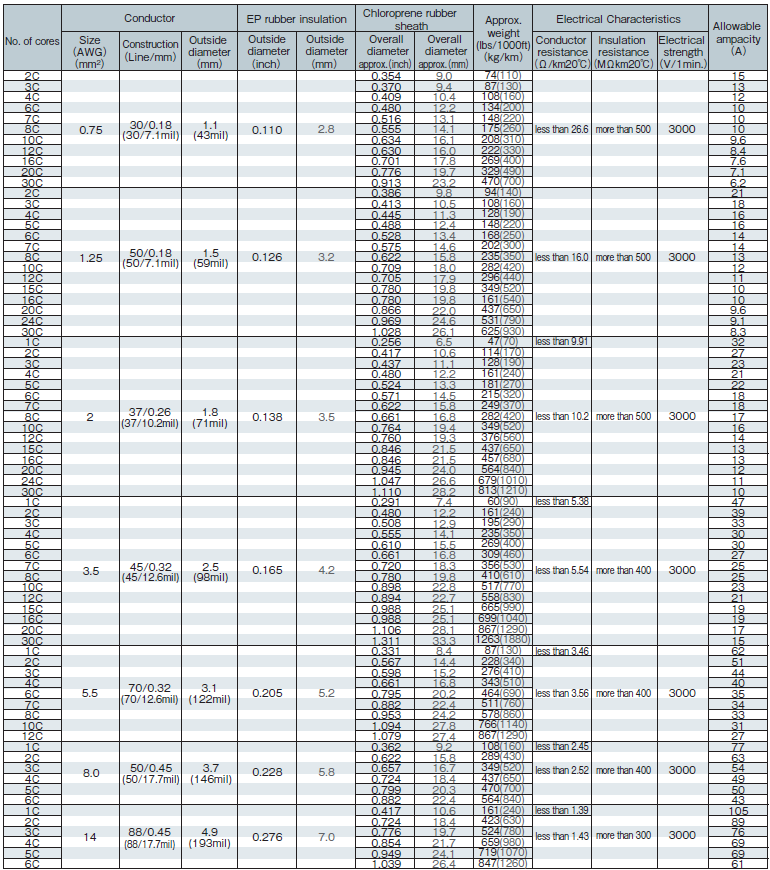

| Category | Power |
|---|---|
| AWG | - |
| SQ（mm2） | 0.75 - 325 |
| Core (pair) | Multi |
| Use | Fix |
| Shield | None |
| Voltage | 600V |
| Rating temperature | 80°C |
| Standards |
 |
| Characteristics | Oil, Heat, Wear |
