CLEANSTAR MV-SB 300V BK HF
Cleanroom compatible low dust robot cable
Application
Appropriate for drag chain wiring for high-speed moving.
Drag chain test 20 million times or more.
Corresponds to halogen-free requirement.
Robot cable with UL and cUL at 300V 80℃.(Category : AVLV2,AVLV8)
Feature

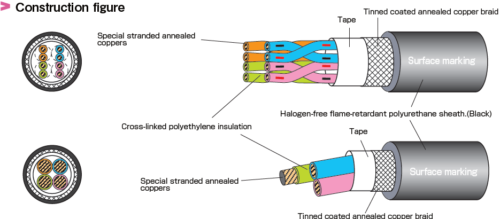

Extremely fine conductor use.
Cross-linked polyethylene used for insulation.
Halogen-free flame-retardant
polyurethane (TPU)used for sheath.
Flame resisting : UL, cUL FT2.(Horizontal flame tes)
IPA Certification (ISO14644-1 Air Cleanliness)
Uses materials equivalent to the Class 1 certified size.
Application
Appropriate for drag chain wiring for high-speed moving.
Drag chain test 20 million times or more.
Corresponds to halogen-free requirement.
Robot cable with UL and cUL at 300V 80℃.(Category : AVLV2,AVLV8)
Feature
Extremely fine conductor use.
Cross-linked polyethylene used for insulation.
Halogen-free flame-retardant
polyurethane (TPU)used for sheath.
Flame resisting : UL, cUL FT2.(Horizontal flame tes)
IPA Certification (ISO14644-1 Air Cleanliness)
Uses materials equivalent to the Class 1 certified size.

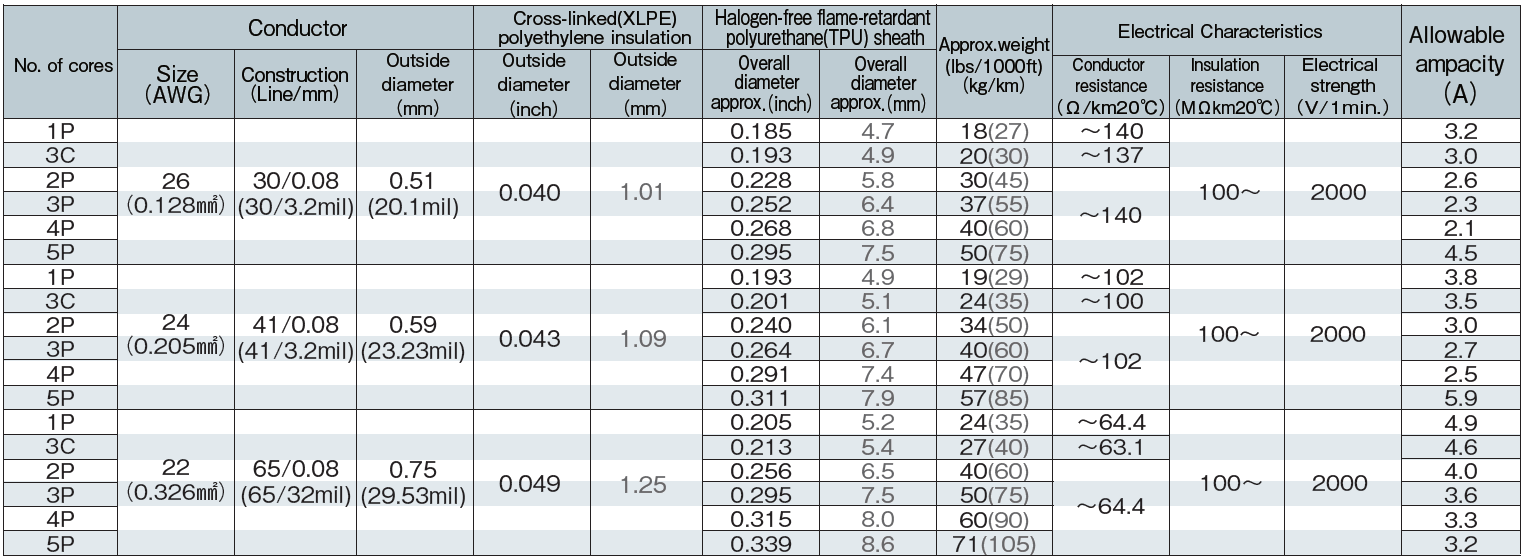

| Category | Signal and instrumentation |
|---|---|
| AWG | 26 - 22 |
| SQ（mm2） | 0.15 - 0.3 |
| Core (pair) | Multi |
| Use | Moving |
| Shield | Have |
| Voltage | 300V |
| Rating temperature | 80°C |
| Standards |
  |
| Characteristics | Oil, Wear |
