Product
SUNLIGHT SX LF
Shielded multipurpose twisted pair type instrumentation cable
Application
Cable for a terminal equipment, metering equipment, communications equipment, the internal wiring of every other electrons, electric apparatuses.
Oil, flexibility, use of shielded.Cable for RS232C.
UL and cUL AWM at 150V,80°C(Category:AVLV2,AVLV8).
Feature
Heat resistant PVC for insulation.
Oil, heat, flame retardant and soft PVC for sheath.
Sheath material is non-migratory against ABS and PS resin.
Chemical, water, abrasion, cold resistance PVC for sheath.
Flame resisting : UL VW-1 , cUL FT1(1P.3C: FT2).
With drain wire.
Application
Cable for a terminal equipment, metering equipment, communications equipment, the internal wiring of every other electrons, electric apparatuses.
Oil, flexibility, use of shielded.Cable for RS232C.
UL and cUL AWM at 150V,80°C(Category:AVLV2,AVLV8).
Feature
Heat resistant PVC for insulation.
Oil, heat, flame retardant and soft PVC for sheath.
Sheath material is non-migratory against ABS and PS resin.
Chemical, water, abrasion, cold resistance PVC for sheath.
Flame resisting : UL VW-1 , cUL FT1(1P.3C: FT2).
With drain wire.

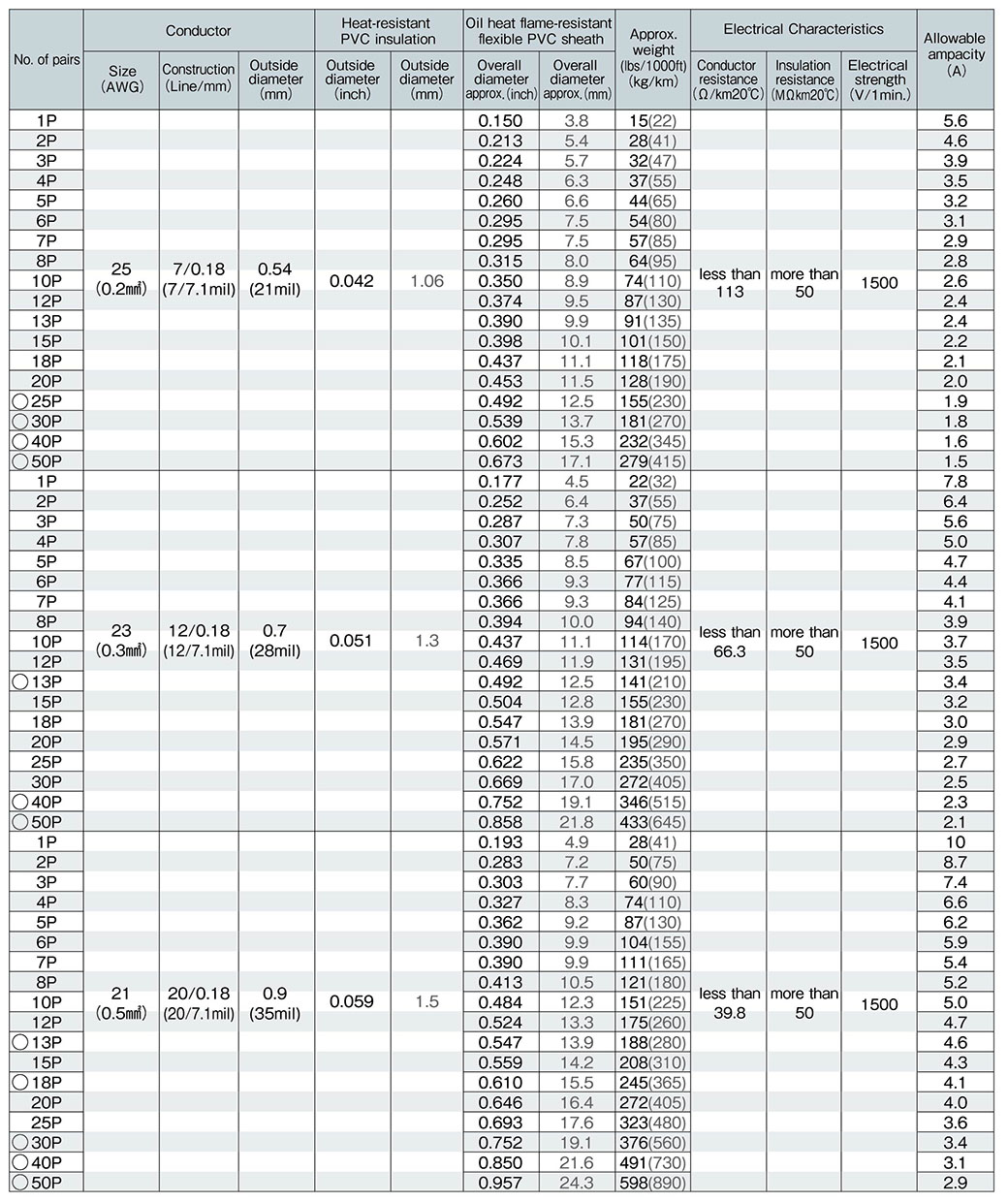

| Category | Signal and instrumentation |
|---|---|
| AWG | 25 - 21 |
| SQ（mm2） | 0.2 - 0.5 |
| Core (pair) | Multi |
| Use | Fix |
| Shield | Have |
| Voltage | 150V |
| Rating temperature | 80°C |
| Standards |
  |
| Characteristics | Oil, Heat |
