Product
C3/RV-90 LF
Application

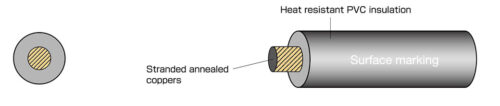

Equipment in the wiring for the heat-resistant vinyl wire.
Feature
Product that corresponds to CCC attestation.
It passes GB standard(GB/T18380) vertical test※.
CE marking.
It suits Electrical Appliance and Material Safety Law.
※Refer to JIS C3665(IEC60332-1)for the test method.
Equipment in the wiring for the heat-resistant vinyl wire.
Feature
Product that corresponds to CCC attestation.
It passes GB standard(GB/T18380) vertical test※.
CE marking.
It suits Electrical Appliance and Material Safety Law.
※Refer to JIS C3665(IEC60332-1)for the test method.

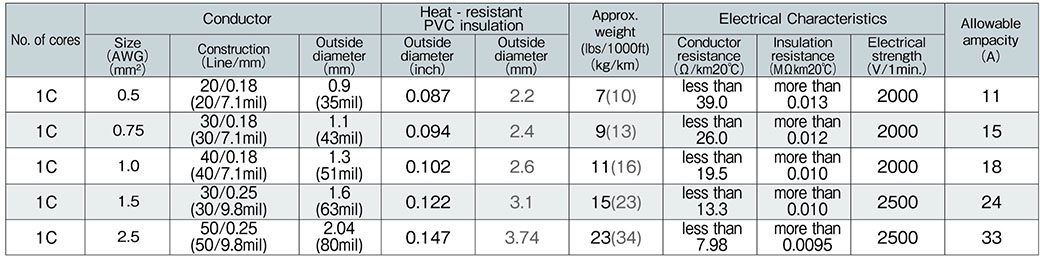

| Category | Power |
|---|---|
| AWG | - |
| SQ（mm2） | 0.5 - 2.5 |
| Core (pair) | Single |
| Use | Fix |
| Shield | None |
| Voltage | 300/500V |
| Rating temperature | 90°C |
| Standards |
   |
| Characteristics | Oil, Heat |
